ISO CE 8 insulation panels nylon plug

Use categories A-B-C-D-E ETAG 014
vorpa en p419439-iso-ce-8-insulation-panels-nylon-plug 010

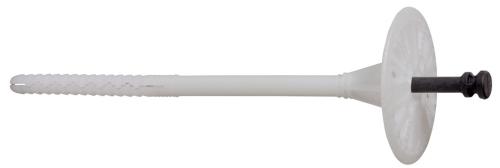

ISO CE 8 with metal pin
ISO CE 8 NYLON with nylon pin - photo 1
Download
vorpa en p419439-iso-ce-8-insulation-panels-nylon-plug 011 Data sheet vorpa en p419439-iso-ce-8-insulation-panels-nylon-plug 011 Data sheet

SUPPORT MATERIALS

vorpa en p419439-iso-ce-8-insulation-panels-nylon-plug 013
Non cracked concrete
vorpa en p419439-iso-ce-8-insulation-panels-nylon-plug 014
Hollow base material
vorpa en p419439-iso-ce-8-insulation-panels-nylon-plug 015
Solid base material
vorpa en p419439-iso-ce-8-insulation-panels-nylon-plug 016
Aerated concrete
vorpa en p419439-iso-ce-8-insulation-panels-nylon-plug 017
Insulation panels
vorpa en p419439-iso-ce-8-insulation-panels-nylon-plug 018 = Suitable application vorpa en p419439-iso-ce-8-insulation-panels-nylon-plug 019 = after checking the consistency of the base material

Certifications

vorpa en p419439-iso-ce-8-insulation-panels-nylon-plug 020

Suitable to fix

  • Mineral wool lamella
  • Mineral wool
  • Polystyrene panels
  • Extruded polystyrene
  • DESCRIPTION
  • vorpa en p419439-iso-ce-8-insulation-panels-nylon-plug 021REQUEST INFO
Versions:
  • ISO CE 8 polyethylene fixing with white galvanized steel pin with head coated with plastic suitable for compact insulation panels on all types of building materials
  • ISO CE 8 NYLON polyethylene fixing with expansion glass fibre reinforced polyamide pin suitable for compact and soft insulation panels on all types of building materials

Benefits:
  • Use category according to ETAG 014 A-B-C-D-E.
  • Ideal for applications on compact masonry covered by heat insulating panels with minimum thickness 45 mm
  • Reduced thermal transfer granting energy saving dues to plastc ending of metal pin
  • Easy and quick installation, the expansion is carried out by hammering the pin inside the nylon fixing
  • Reduced embedment depth enable reduced drilling times
  • Special washer Ø140mm permits the fixing on lightweight insulation materials
  • Pin's head is covered by fiberglass reinforced polyamide
  • The steel pin is particularly suitable for fixings on rigid insulation materials​

Suitable for:
  • Concrete
  • Aerated concrete blocks
  • Lightweight aggregate blocks
  • Solid bricks
  • Clay bricks
  • Hollow bricks​

Suggestions for use:
  • Always consider an appropriate safety factor
  • Check load bearing capacity values
  • Respect the installation data
  • When calculating the usable length it is suggested to take into consideration eventual extra thicknesses  such as glues,sealants, old plasters
