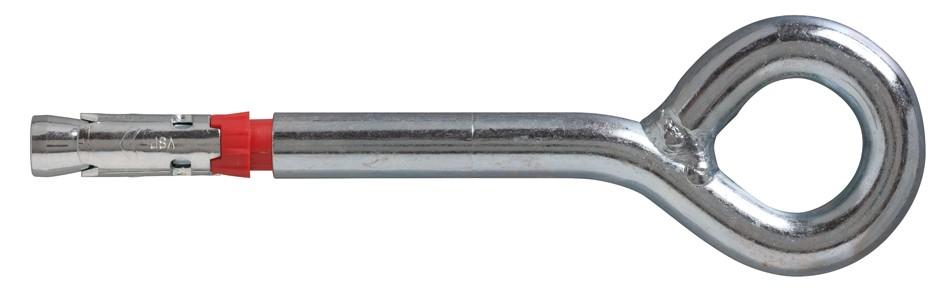

VSP P Ø23 welded eyebolt

For scaffolds
VSX-P Ø23 eyebolt
Download
vorpa en p418406-vsp-p-oe23-welded-eyebolt 010 Data sheet

SUPPORT MATERIALS

vorpa en p418406-vsp-p-oe23-welded-eyebolt 011
Non cracked concrete
vorpa en p418406-vsp-p-oe23-welded-eyebolt 012
Solid base material
vorpa en p418406-vsp-p-oe23-welded-eyebolt 013
Solid brick
vorpa en p418406-vsp-p-oe23-welded-eyebolt 014
Natural stone
vorpa en p418406-vsp-p-oe23-welded-eyebolt 015 = Suitable application vorpa en p418406-vsp-p-oe23-welded-eyebolt 016 = after checking the consistency of the base material

Certifications

vorpa en p418406-vsp-p-oe23-welded-eyebolt 017

Suitable to fix

  • Scaffolds standing on the ground
  • Tensioning ropes
  • Chains
  • DESCRIPTION
  • vorpa en p418406-vsp-p-oe23-welded-eyebolt 018REQUEST INFO
Benefits:
  • Galvanized steel welded eyebolt Ø 23 with VS-P or VS-X expansion body
  • The eyebolt can be used several times thanks to the anchor spare part
  • The special nylon washer avoids the seepage of water through the external hole
  • The anchor grants safe and easy applications thanks to mark on the eyebolt stem enabling a right embedment depth during the anchoring
  • Smooth expansion thanks to the three cuts on the expansion body
  • High tensile loads with standard depth
  • The cap hole covering enables to cover off holes at the end of the work in a quick and simple way​

Suitable for:
  • Concrete
  • Solid brick
  • Natural stone

Suggestion for use:
  • Make sure the scaffold and the eyebolt are well positioned each other
  • Apply a proper safety factor according to the each situation
  • Always check load bearing capacity values in the table
  • Respect the installation data
  • Clean the hole before the installation

VSP P Ø23 welded eyebolt
