Products » Scaffolding anchors » Holding cables anchors

WIRE ROPE ROUNDED EYEBOLT

For wire ropes and cables

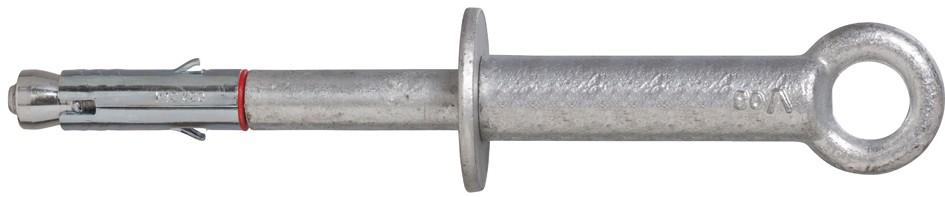

AV OS with AV anchor
AV OS L extralong with AV anchor - photo 1
Download
vorpa en p419136-wire-rope-rounded-eyebolt 010 Data sheet vorpa en p419136-wire-rope-rounded-eyebolt 010 Data sheet

SUPPORT MATERIALS

vorpa en p419136-wire-rope-rounded-eyebolt 012
Non cracked concrete
vorpa en p419136-wire-rope-rounded-eyebolt 013
Solid base material
vorpa en p419136-wire-rope-rounded-eyebolt 014
Solid brick
vorpa en p419136-wire-rope-rounded-eyebolt 015
Natural stone
vorpa en p419136-wire-rope-rounded-eyebolt 016 = Suitable application vorpa en p419136-wire-rope-rounded-eyebolt 017 = after checking the consistency of the base material

Suitable to fix

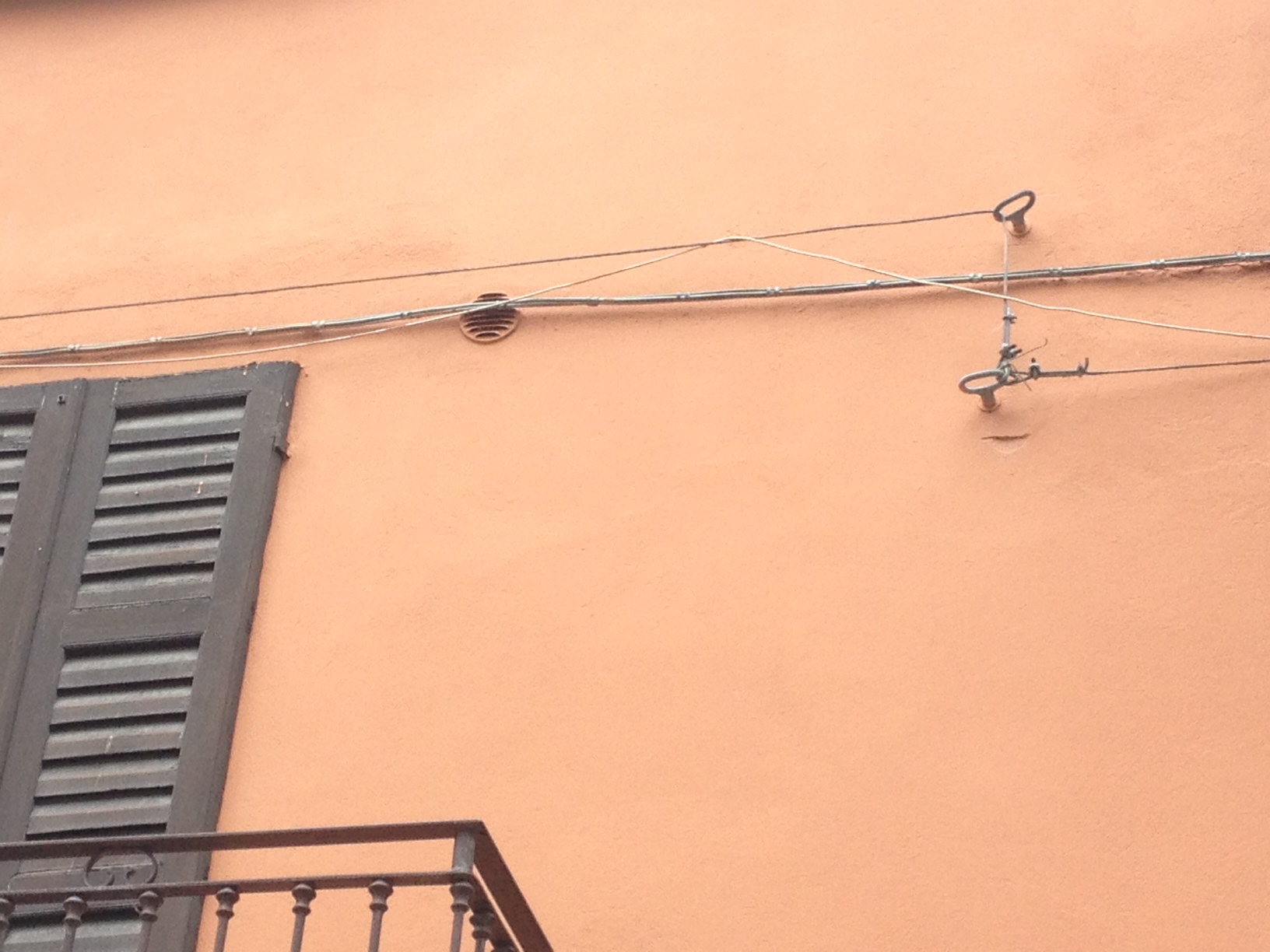

  • Tensioning ropes
  • Chains
  • DESCRIPTION
  • vorpa en p419136-wire-rope-rounded-eyebolt 018REQUEST INFO

Versions:

  • Torque controlled expansion anchor AV OS composed of anti-rotation cold formed body, expansion conical nut, eyebolt Ø25mm and steel washer Ø60mm for tensioning ropes and chains. Available in extra long version AV OS L for applications on solid materials coated by heat insulating panels

Benefits:
  • The eyebolt can be used several times thanks to the anchor spare part
  • Anti-rotation during the installation procedure

Suitable for:
  • Concrete
  • Solid brick
  • Natural stone

Suggestion for use:
  • Apply a proper safety factor according to the each situation
  • Always check load bearing capacity values in the table
  • Respect the installation data
  • Clean the hole before the installation

WIRE ROPE ROUNDED EYEBOLT
