VPC CE multi-purpose nylon fixing

Assesment for use categories A-B-C-D
vorpa en p421723-vpc-ce-multi-purpose-nylon-fixing 010

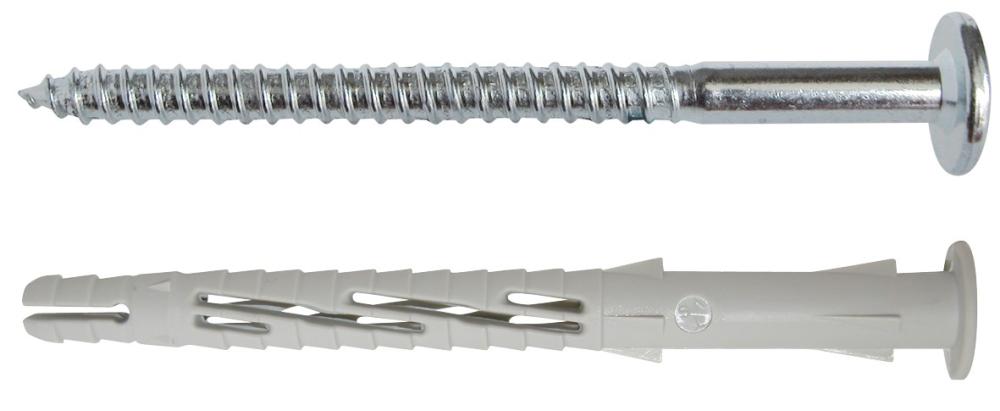

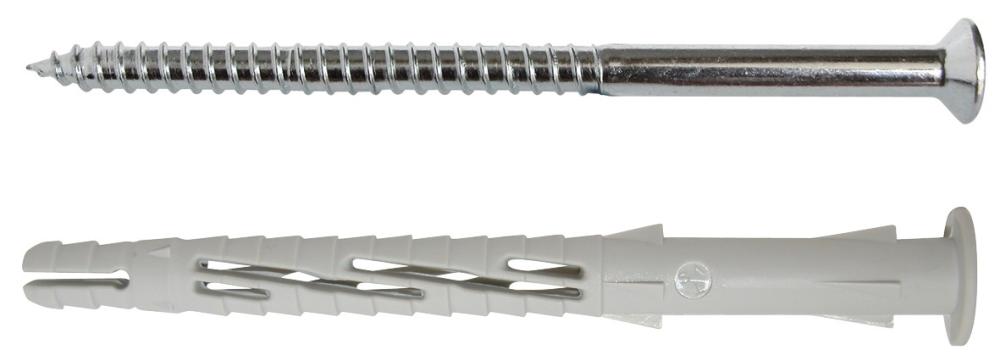

Nylon plug VPC with Torx recess fat countersunk head screw

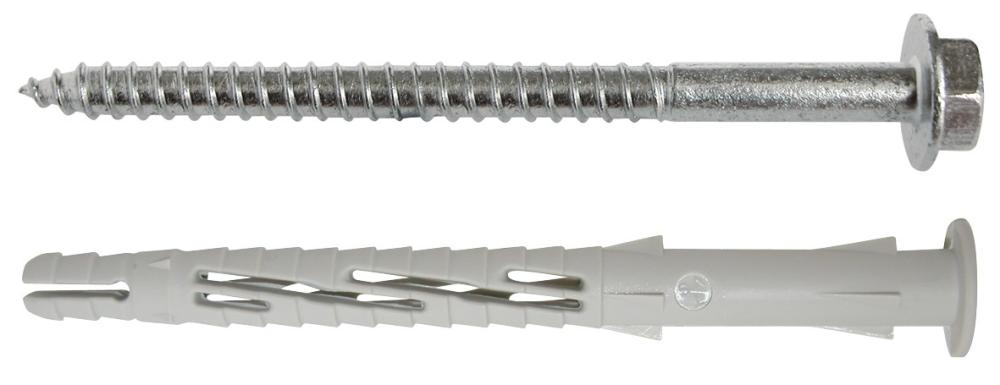

Nylon plug VPC with Torx recess hexagonal washer head special wood screw - photo 1
Nylon plug VPC with Torx recess mushroom head special wood screw - photo 2

SUPPORT MATERIALS

vorpa en p421723-vpc-ce-multi-purpose-nylon-fixing 011
Non cracked concrete
vorpa en p421723-vpc-ce-multi-purpose-nylon-fixing 012
Hollow base material
vorpa en p421723-vpc-ce-multi-purpose-nylon-fixing 013
Solid base material
vorpa en p421723-vpc-ce-multi-purpose-nylon-fixing 014
Perforated base material
vorpa en p421723-vpc-ce-multi-purpose-nylon-fixing 015
Natural stone
vorpa en p421723-vpc-ce-multi-purpose-nylon-fixing 016 = Suitable application vorpa en p421723-vpc-ce-multi-purpose-nylon-fixing 017 = after checking the consistency of the base material

Certifications

vorpa en p421723-vpc-ce-multi-purpose-nylon-fixing 018
vorpa en p421723-vpc-ce-multi-purpose-nylon-fixing 019
vorpa en p421723-vpc-ce-multi-purpose-nylon-fixing 020
vorpa en p421723-vpc-ce-multi-purpose-nylon-fixing 021

Suitable to fix

  • Window and door frames
  • Light structural works
  • Wooden substructures
  • Handrail
Benefits:
  • Safe and quick fixings
  • Special anti-rotation wings that prevents the plug turning in the hole on installation
  • The plug’s neck avoid the introduction of the plug inside the hole
  • Resistant to temperatures from -40°C to +80°C
  • European Technical Approval ETAG 020
  • Special wings to avoid turning
  • The special anti-rotation wings on the nylon sleeve provides easy and safe installation on all types of material, avoiding any rotation of the nylon sleeve while the screw is installed
  • No waiting time before loading
  • Ideal for fixing of facade, frames and general fastenings
  • Fully radial expansion behaviour on concrete and solid masonry
  • Multiple radial expansion behaviour on perforated masonry
  • Knotting behaviour on hollow masonry
  • Temperature resistant from -40°C to + 80°C
  • Fire resistant only Ø10 R90​

Approved for
  • Concrete
  • Solid brick
  • Perforated brick
  • Hollow brick
  • Vulcanic tuf
  • Aerated concrete​

Also suitable for
  • Natural stone (Not covered by ETA)

Suggestion for use:
  • Always consider an appropriate safety factor
  • Check load bearing capacity values
  • Respect the installation data
  • Clean the hole before the installation

VPC CE multi-purpose nylon fixing
