Products » Insulation fixings

ISO CE 10 MF insulation panels nylon plug

Use category B-C-E ETAG 014
vorpa en p419605-iso-ce-10-mf-insulation-panels-nylon-plug 010
ISO CE 10 MF B-C

SUPPORT MATERIALS

vorpa en p419605-iso-ce-10-mf-insulation-panels-nylon-plug 011
Hollow base material
vorpa en p419605-iso-ce-10-mf-insulation-panels-nylon-plug 012
Solid base material
vorpa en p419605-iso-ce-10-mf-insulation-panels-nylon-plug 013
Insulation panels
vorpa en p419605-iso-ce-10-mf-insulation-panels-nylon-plug 014 = Suitable application vorpa en p419605-iso-ce-10-mf-insulation-panels-nylon-plug 015 = after checking the consistency of the base material

Certifications

vorpa en p419605-iso-ce-10-mf-insulation-panels-nylon-plug 016

Suitable to fix

  • Polystyrene panels
  • Rigid insulation panels
Benefits:
  • Polyamide fixing with pin made of fiberglass reinforced polyamide suitable for the fixing of rigid insulation panels on masonry
  • Use category according to ETAG 014 B-C-E

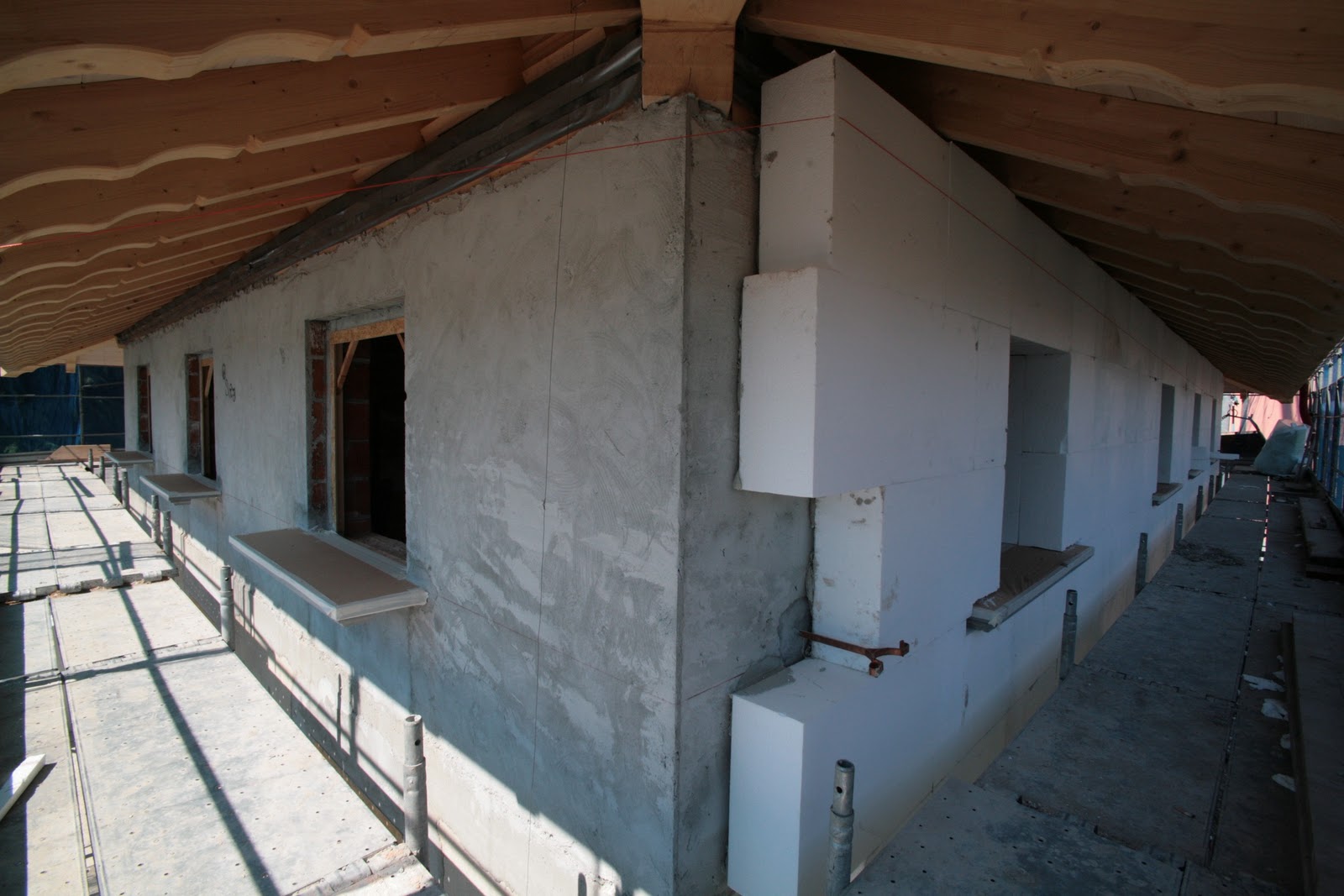

  • Ideal for applications on compact masonry covered by heat insulating panels and rigid insulation materials with minimum thickness 60 mm
  • Reduced thermal transfer granting energy saving
  • Easy and quick installation, the expansion is carried out by hammering the pin inside the nylon fixing
  • Reduced embedment depth enable reduced drilling times
  • Pin made of fiberglass reinforced polyamide​

Suitable for:
  • Silica bricks class 15
  • Solid bricks
  • Clay bricks
  • Perforated bricks​
  • Autoclaved aerated concrete

Suggestions for use:
  • Always consider an appropriate safety factor
  • Check load bearing capacity values
  • Respect the installation data
  • When calculating the usable length it is suggested to take into consideration eventual extra thicknesses  such as glues,sealants, old plasters
