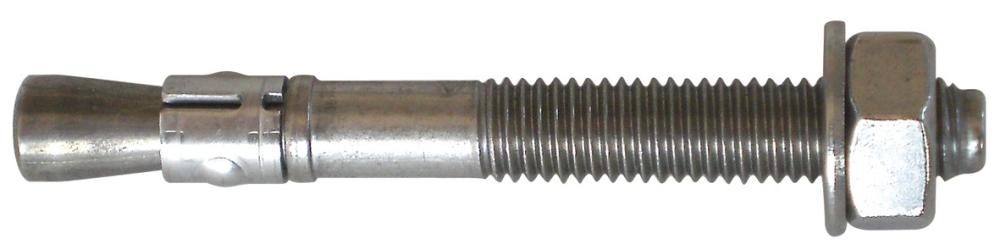

VE.7CE through heavy duty anchor
Assesment for non-cracked concrete
Data sheet
SUPPORT MATERIALS
Non cracked concrete
Natural stone
= Suitable application
= after checking the consistency of the base materialCertifications
Suitable to fix
- Plants engineering
- Heavy structural works
- Metal structures
- Profles
- Gates
- Stairs
- Parapets
- DESCRIPTION
REQUEST INFO
Versions:
- Zinc-plated
- A4 stainless steel
- Hot-dipped galvanized
Benefits:
- High performances through steel anchor composed of steel pin, nut, washer and expansion clip.
- When the hexagonal nut is tightened, the tapered bolt is pulled into the expansion clip and expands it against the drill hole wall.
- Reduced hole diameter
- Suitable for through-setting applications in concrete
- Thread diameter and hole diameter are the same
- Reinforced anchor’s head to avoid damaging the thread during the installation
- Special designed expansion clip granting a smooth expansion and avoiding the rotation of the anchor during the installation
- Ideal corrosion protection
Approved for:
- Non-cracked concrete C20/25 to C50/60
- Anchorage under fire exposure in standard TR 020 R30-R120
Also suitable for:
- Non cracked concrete C12/15
- Natural stone
Suggestion for use:
- Choose the right size of the anchor related to the object to be fxed
- Always check load bearing capacity values in the table
- Respect the installation data
- Clean the hole before the installation
