VE.A through heavy duty anchor

For concrete and solid masonry - High performance
VE.A zinc-plated version
VE.A2 stainless steel version - photo 1
VE.A4 stainless steel version - photo 2
VE.A ZF hot dip galvanized version - photo 3

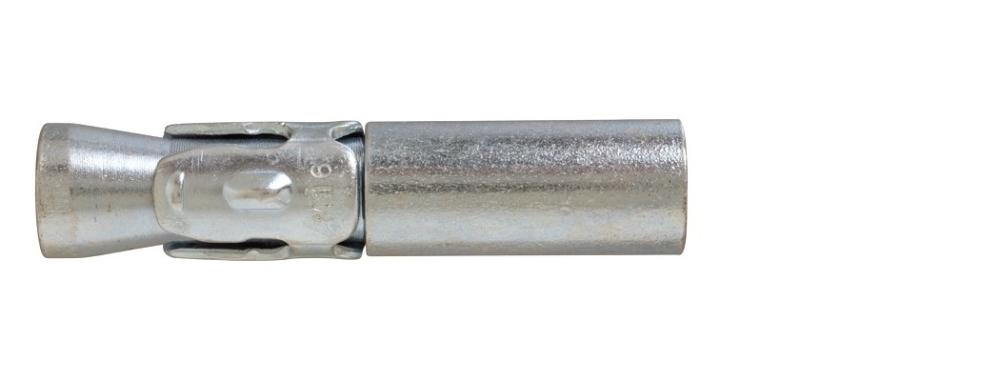

VE.A M internal thread version - photo 4
Download

SUPPORT MATERIALS

vorpa en p417532-ve-a-through-heavy-duty-anchor 011
Non cracked concrete
vorpa en p417532-ve-a-through-heavy-duty-anchor 012
Natural stone
vorpa en p417532-ve-a-through-heavy-duty-anchor 013 = Suitable application vorpa en p417532-ve-a-through-heavy-duty-anchor 014 = after checking the consistency of the base material

Certifications

vorpa en p417532-ve-a-through-heavy-duty-anchor 015
vorpa en p417532-ve-a-through-heavy-duty-anchor 016
vorpa en p417532-ve-a-through-heavy-duty-anchor 017
vorpa en p417532-ve-a-through-heavy-duty-anchor 018
vorpa en p417532-ve-a-through-heavy-duty-anchor 019

Suitable to fix

  • Steel beams
  • Sections
  • Plates
  • Heavy structural works
  • Plants engineering
  • Railings and balustrades
  • Gates
Versions:
  • Zinc-plated
  • A2 - A4 stainless steel
  • Hot-dip galvanized​

Benefits:
  • Through steel anchor composed of steel pin, nut, washer and expansion clip. The version with internal thread VE.A M to be used with bolts of any metrical length.
  • When the hexagonal nut is tightened, the tapered bolt is pulled
  • Thread diameter and hole diameter are the same
  • Reinforced anchor’s head to avoid damaging the thread during the installation
  • Anti-rotation during the installation procedure and smooth expansion thanks to the particular shape of the clip
  • High load values and fast setting
  • Hot dip galvanized version VE.A ZF for outdoor use and damp conditions​

Suitable for:
  • Non-cracked concrete
  • Natural stone​

Suggestion for use:
  • Choose the right size of the anchor according to the load
  • Always check load bearing capacity values in the table
  • Respect the installation data
  • Clean the hole before the installation
