Products » Chemical anchors » Chemical bonded anchors

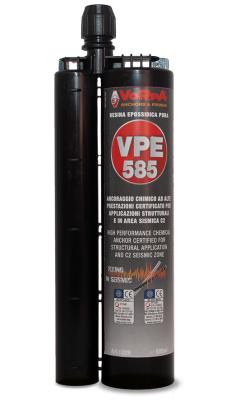

VPE 585-1329 pure epoxy-Fixing in Seismic C2

Assesment for cracked concrete - Fixing in seismic C2
New
vorpa en p1126786-vpe-585-1329-pure-epoxy-fixing-in-seismic-c2 010
VPE 585-1329 pure epoxy-Fixing in Seismic C2
Download

SUPPORT MATERIALS

vorpa en p1126786-vpe-585-1329-pure-epoxy-fixing-in-seismic-c2 011
Non cracked concrete
vorpa en p1126786-vpe-585-1329-pure-epoxy-fixing-in-seismic-c2 012
Reinforced concrete
vorpa en p1126786-vpe-585-1329-pure-epoxy-fixing-in-seismic-c2 013
Cracked concrete
vorpa en p1126786-vpe-585-1329-pure-epoxy-fixing-in-seismic-c2 014
Solid base material
vorpa en p1126786-vpe-585-1329-pure-epoxy-fixing-in-seismic-c2 015
Natural stone
vorpa en p1126786-vpe-585-1329-pure-epoxy-fixing-in-seismic-c2 016 = Suitable application vorpa en p1126786-vpe-585-1329-pure-epoxy-fixing-in-seismic-c2 017 = after checking the consistency of the base material

Certifications

vorpa en p1126786-vpe-585-1329-pure-epoxy-fixing-in-seismic-c2 018
vorpa en p1126786-vpe-585-1329-pure-epoxy-fixing-in-seismic-c2 019
vorpa en p1126786-vpe-585-1329-pure-epoxy-fixing-in-seismic-c2 020
vorpa en p1126786-vpe-585-1329-pure-epoxy-fixing-in-seismic-c2 021
vorpa en p1126786-vpe-585-1329-pure-epoxy-fixing-in-seismic-c2 022
vorpa en p1126786-vpe-585-1329-pure-epoxy-fixing-in-seismic-c2 023
vorpa en p1126786-vpe-585-1329-pure-epoxy-fixing-in-seismic-c2 024

Suitable to fix

  • Structural fixings
  • Heavy duty metal structures
  • Heavy structural works
  • Construction joints
  • Scaffolding links
  • Wall ties, starter bars, studs,
  • Bolts & large screws
  • Electric installations plumbing
  • DESCRIPTION
  • vorpa en p1126786-vpe-585-1329-pure-epoxy-fixing-in-seismic-c2 025REQUEST INFO
Versions:
  • 585ml cartridge

Benefits:
  • A two component chemical anchoring injection system in 3:1 ratio derived from pure epoxy with very high bond strength, developed to anchor threaded rods and rebar into concrete
  • European Technical Assessment for structural use in cracked concrete Approved for seismic applications with performance category C2
  • Suitable for high loads featuring large diameter and deep embedment
  • Longer working times make it suitable for large holes, and high temperature
  • Use in wet or flooded environments and fixing holes, or underwater
  • High durability, resistance to chemicals
  • Used for diamond drill holes, solvent free resin
  • Fixing in concrete, wood, or other high strength materials

Approvals-Certifications-Testing:
  • SEISMIC ACTION C1: M8-M30/Ø8-Ø32mm
  • SEISMIC ACTION C2: M12-M30
  • 19/0201 – ETA Option1 Cracked Concrete EAD 330499-01-0601 v01 / Seismic action C1+C2
  • 19/0200 – EAD 330087-01-0601 Post Installed Rebar Installations
  • Fire Test Report in ETA for post-installed rebar
  • NSF STandard 61 Approved for use with Potable drinking water
  • LEED tested
  • VOC A+ Rating (Volatile Organic Content)

Also suitable for:
  • Cracked and non cracked concrete  < C20/25 > (Not covered by ETA)
  • Natural stone (Not covered by ETA)
​
Suggestion for use:
  • Performance based on clean holes.HAMMER DRILLED – blown and then brushed with a stiff metal brush and blown again
