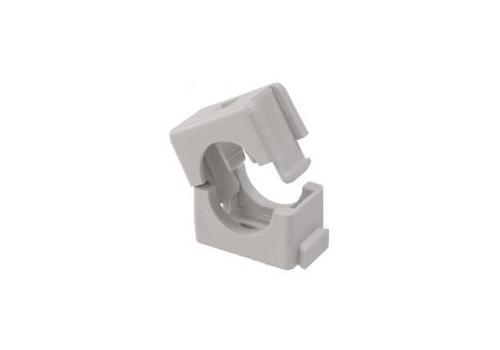

KP nylon clip

Plastic clip with an upper part suitable for pipes saddle
Download
vorpa en p420222-kp-nylon-clip 011 = Suitable application vorpa en p420222-kp-nylon-clip 012 = after checking the consistency of the base material

Suitable to fix

  • Metric insulation pipes cable
Characteristics:
  • Cables: Ø mini 8 - Ø maxi 60
  • Raw Material: Polyamid 6
  • Burning properties: according to IEC 60695-2-12 (GWFI): 650°C
  • Colour: Grey, RAL 7035
  • Installation temperature: -5°C / +40°C
  • Working temperature: -30°C / +65°C​

Suitable for:
  • nylon plug Ø6​

Benefits:
  • Plastic clip with an upper part suitable for pipes saddle
  • Can be installed with a light-weight anchor
  • Made of polypropylene colour Grey RAL 7035
  • Flammability rating: UL 94-HB
  • Simple interlocking of the upper part by pressure
  • The pressure of the inside fexible tabs fx the pipes in position, leaving room for longitudinal movements
  • A side hook for connecting other pipe saddles in series
  • Available in many diameters and packaging (box or industrial carton)​

Suggestion for use:
  • Always check load bearing capacity values in the table
  • Respect the installation data
  • Clean the hole before the installation
